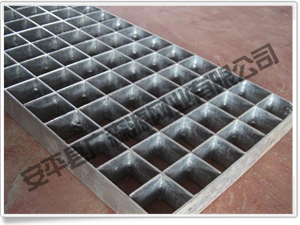

Plug in steel grid plate

NAME

Plug in steel grid plate

MATERIALS

Low carbon steel, also can choose stainless steel, brass, aluminum material

TECHNICS

Plug in steel grid plate (steel grating) is a large bearing capacity of the steel grid plate products, which is composed of a certain size of Q235 low carbon steel after the slot (hole), plug-in, welding, finishing made of a steel plate products

CHARACTERISTICS

With a solid solder joint,the size of holes are uniform, network flattening, design beautiful, practical and light, high-strength anti-corrosion, maintenance-free and so on

USES

It is widely used in civil and commercial buildings, theatres, subway, subway and other municipal engineering field, can be used for suspended ceiling, indoor and outdoor decoration decoration, platform walkway, ventilation window (well), advertising plaque, various cover.Plug grille plate solid solder joint, Kongju uniform, network-formation, design beautiful, practical, is the use of goods, is a work of art, over the years has developed hundreds of varieties, products exported sixteen favored by customers.Plug grille plate is widely used in factories, shopping malls, theatre hall ceiling or interior decoration, it can also be used for platform walkway.

No.

Item

Description

1

Bearing Bar

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc

2

Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.

3

Twisted Cross Bar Pitch

38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc

4

Material Grade

ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc

5

Surface Treatment

Black, self colour, hot dip galvanized, painted, spray coating

6

Grating Style

Plain / Smooth, Serrated /teeth, I bar, serrated I bar

7

Standard

China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),

UK: BS4592-1987, Australia: AS1657-1992, Japan: JIS
