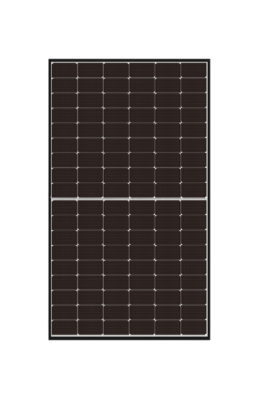

PANNEAU SOLAIRE 545 WATT FULL BLACK MONOCRYSTALLINE - TOPRAY

0,25€/watt
545watt
145€

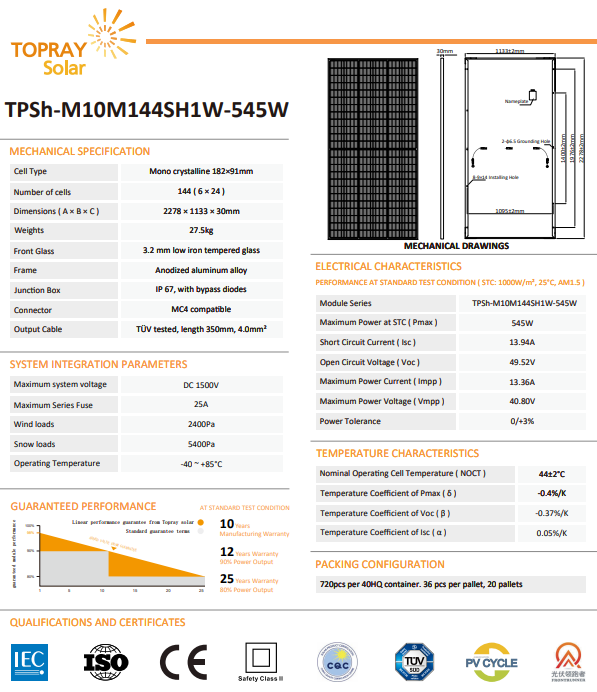

Modules Series : TPSh-M10M144SH1W-545W

MECHANICAL SPECIFICATION :

Cell Type : Mono crystalline 182×91mm
Number of cells : 144 ( 6 × 24 )
Dimensions ( A × B × C ) : 2278 × 1133 × 30mm
Weights : 27.5kg
Front Glass : 3.2 mm low iron tempered glass
Frame : Anodized aluminum alloy
Junction Box : IP 67, with bypass diodes
Connector : MC4 compatible
Output Cable : TÜV tested, length 350mm, 4.0mm²

SYSTEM INTEGRATION PARAMETERS :

Maximum system voltage : DC 1500V
Maximum Series Fuse : 25A
Wind loads : 2400Pa
Snow loads : 5400Pa
Operating Temperature : -40 ~ +85°C

ELECTRICAL CHARACTERISTICS
PERFORMANCE AT STANDARD TEST CONDITION ( STC: 1000W/m², 25°C, AM1.5 ) :

Module Series : TPSh-M10M144SH1W-545W
Maximum Power at STC ( Pmax ) : 545W
Short Circuit Current ( Isc ) : 13.94A
Open Circuit Voltage ( Voc ) : 49.52V
Maximum Power Current ( Impp ) : 13.36A
Maximum Power Voltage ( Vmpp ) : 40.80V
Power Tolerance : 0/+3%

TEMPERATURE CHARACTERISTICS :

Nominal Operating Cell Temperature ( NOCT ) : 44±2°C
Temperature Coefficient of Pmax ( δ ) : -0.37%/K
Temperature Coefficient of Voc ( β ) : -0.4%/K
Temperature Coefficient of Isc ( α ) : 0.05%/K

PACKING CONFIGURATION :

720pcs per 40HQ container. 36 pcs per pallet, 20 pallets
0,25€/watt
545watt
135€
